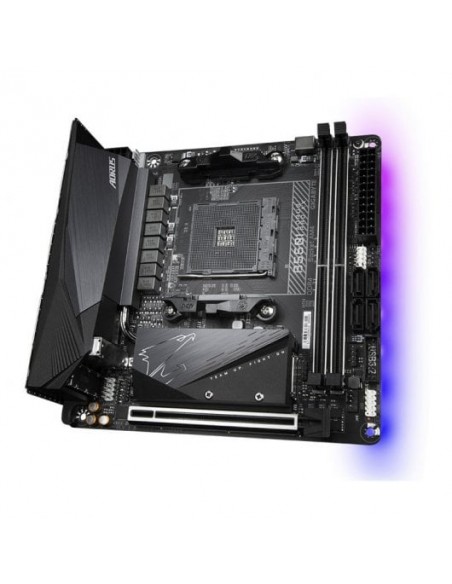

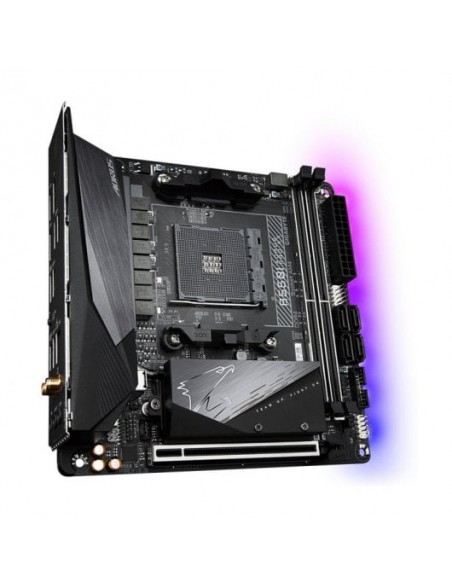

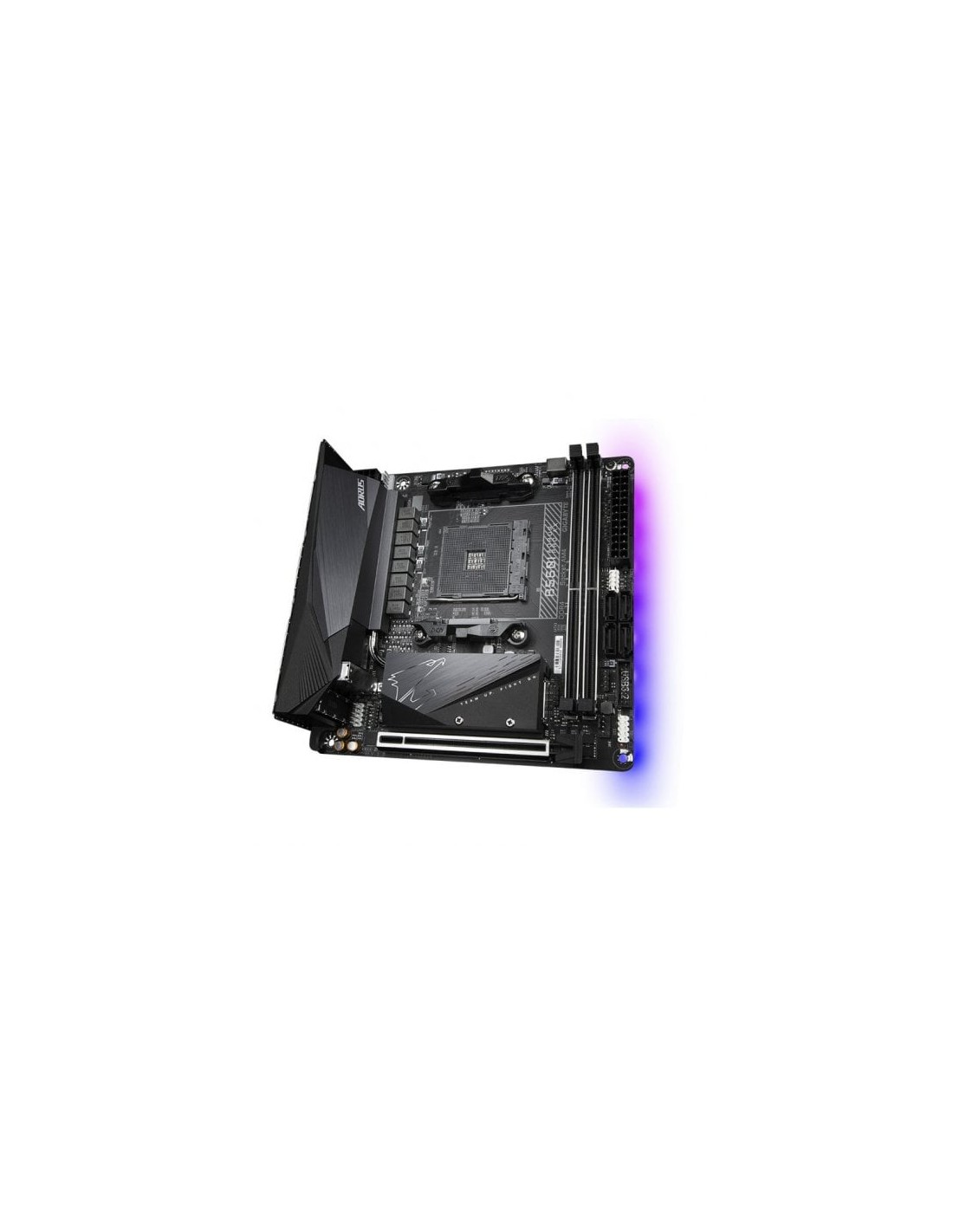

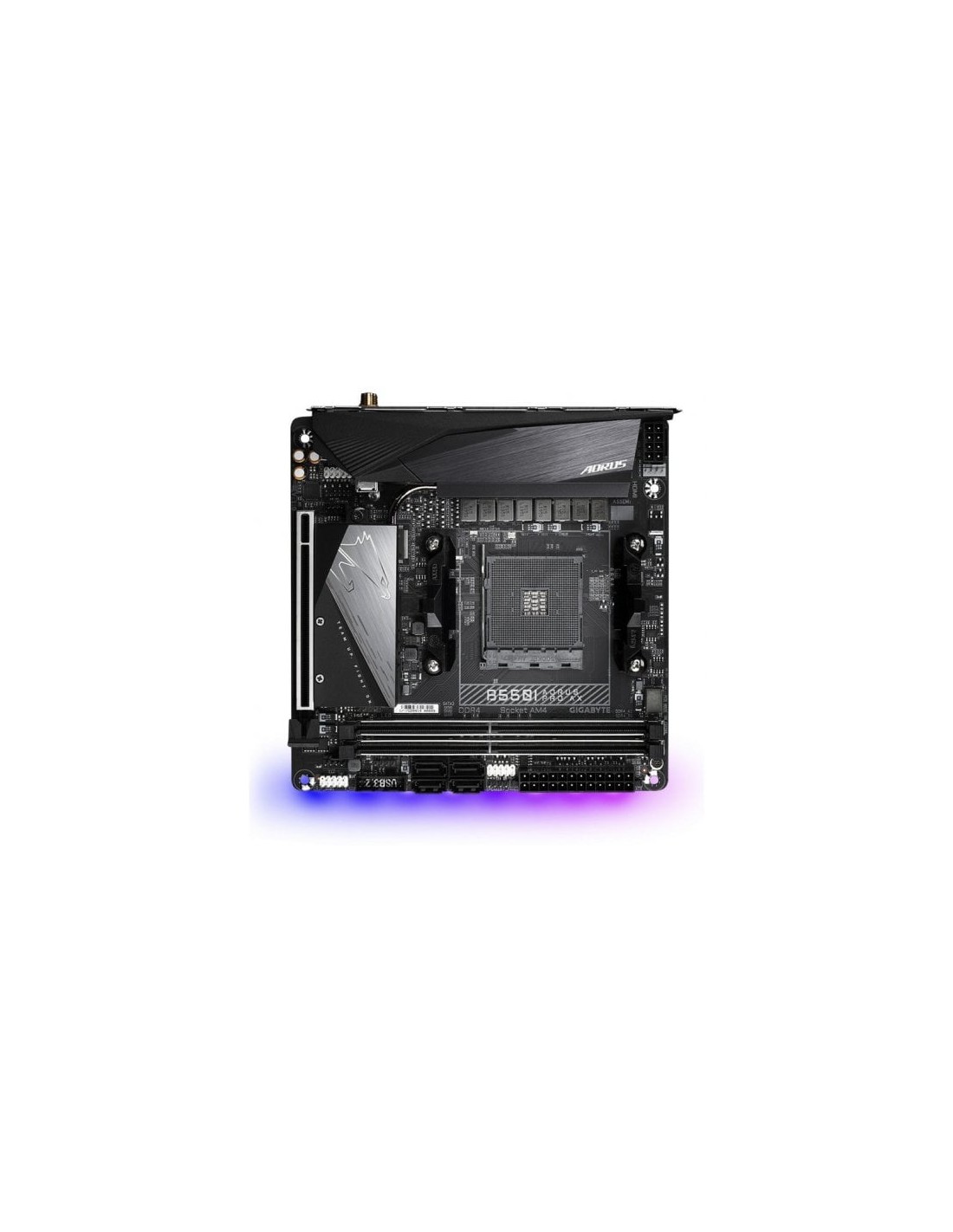

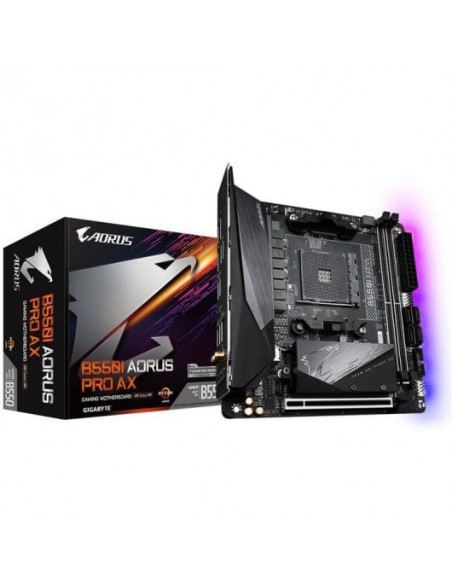

Gigabyte B550I AORUS Pro AX AM4 DDR4 Mini-ITX Placa Base

La Gigabyte B550I Aorus Pro AX es compatible con los procesadores AMD Ryzen de la tercera generación.

Detalles del Producto

• Compatible con procesadores AMD Ryzen ™ de la tercera generación.
• Soporta memoria DDR4 sin búfer en doble canal ECC / No ECC, con 2 DIMM.
• Sistema VRM digital directo de 8 fases que incluye una etapa de potencia inteligente (SPS) de 90 A.
• Innovador diseño térmico que cuenta con un disipador extendido y multicapa junto a una placa base térmica.
• Ranura Ultra16 Durable ™ PCIe 4.0 Ready x16.
• Dos ranuras NVMe PCIe 4.0 / 3.0 x4 M.2 con protección contra el calor.
• Intel® WiFi 6 802.11ax 2T2R y Bluetooth 5 a bordo, incluyendo antena AORUS.
• Audio AMP-UP con ALC1220-VB y condensadores Nichicon que ofrecen un SNR trasero de 120dB.
• Conexión LAN ultrarrápida de 2.5GbE con gestión de ancho de banda.
• Ofrece soporte para USB 3.2 Gen2 Type-C ™, DisplayPort y Dual HDMI.
• RGB FUSION 2.0 que presenta un espectáculo de luces LED direccionables multizona, compatible con tiras LED y LED RGB.
• Smart Fan 5 incluye diversos sensores de temperatura, cabezales híbridos para ventiladores con FAN STOP y detección de ruido.
• Actualización del BIOS Q-Flash Plus sin necesidad de instalar la CPU, la memoria o la tarjeta gráfica.
• Escudo IO preinstalado para facilitar y agilizar la instalación.

Especificaciones Técnicas

• CPU
  • AMD Socket AM4, support for: 3rd Generation AMD Ryzen™ processors/ New Generation AMD Ryzen™ with Radeon™ Graphics processors
  • (Please refer "CPU Support List" for more information.)
• Chipset
  • AMD B550
• Memory
  • 2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory
  • 3rd Gen AMD Ryzen™ Processors:
  • Support for DDR4 4866(O.C.)/4600(O.C.)/4400(O.C.)/4000(O.C.)/3600(O.C.)/3333(O.C.)/3200/2933/2667/2400/2133 MHz memory modules
  • New Generation AMD Ryzen™ with Radeon™ Graphics processors:
  • Support for DDR4 5300(O.C.)/5200(O.C.)/5000(O.C.)/4866(O.C.)/4600(O.C.)/4400(O.C.)/4000(O.C.)/3600(O.C.)/3333(O.C.)/3200/2933/2667/2400/2133 MHz memory modules
  • Dual channel memory architecture
  • Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules
  • Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
  • Support for Extreme Memory Profile (XMP) memory modules
  • (Please refer "Memory Support List" for more information.)
• Onboard Graphics
  • Integrated in the New Generation AMD Ryzen™ with Radeon™ Graphics processors:1 x DisplayPort, supporting a maximum resolution of 5120x2880@60 Hz
  • * Support for DisplayPort 1.4 version, HDCP 2.3, and HDR.
  • 2 x HDMI ports, supporting a maximum resolution of 4096x2160@60 Hz
  • * Support for HDMI 2.1 version, HDCP 2.3, and HDR.
  • Support for up to 3 displays at the same time
  • Maximum shared memory of 16 GB
• Audio
  • Realtek® ALC1220-VB codec
  • * The back panel line out jack supports DSD audio.
  • High Definition Audio
  • 2/4/5.1/7.1-channel
  • * To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.
• LAN
  • Realtek® 2.5GbE LAN chip (2.5 Gbit/1 Gbit/100 Mbit)
  • Wireless Communication module
  • Intel® Wi-Fi 6 AX200WIFI a, b, g, n, ac with wave 2 features, ax, supporting 2.4/5 GHz Dual-Band
  • BLUETOOTH 5
  • Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
  • * Actual data rate may vary depending on environment and equipment.
• Expansion Slots
  • 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:3rd Generation AMD Ryzen™ processors support PCIe 4.0 x16 mode
  • New Generation AMD Ryzen™ with Radeon™ Graphics processors support PCIe 3.0 x16 mode
• Storage Interface
  • 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2260/2280 SSDs:
  • - 3rd Generation AMD Ryzen™ processors support SATA and PCIe 4.0 x4/x2 SSDs
  • - New Generation AMD Ryzen™ with Radeon™ Graphics processors support SATA and PCIe 3.0 x4/x2 SSDs
  • 1 x M.2 connector (M2B_SB) on the back of the motherboard, integrated in the Chipset, supporting Socket 3, M key, type 2260/2280 SSDs:
  • - Supporting SATA and PCIe 3.0 x4/x2 SSDs
  • 4 x SATA 6Gb/s connectors, integrated in the Chipset:
  • - Support for RAID 0, RAID 1, and RAID 10
• USB
  • CPU:4 x USB 3.2 Gen 1 ports on the back panel
  • Chipset:1 x USB Type-C™ port on the back panel, with USB 3.2 Gen 2 support
  • 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
  • 2 x USB 3.2 Gen 1 ports available through the internal USB header
  • 2 x USB 2.0/1.1 ports available through the internal USB header
• Internal I/O Connectors
  • 1 x 24-pin ATX main power connector
  • 1 x 8-pin ATX 12V power connector
  • 1 x CPU fan header
  • 2 x system fan headers
  • 1 x addressable LED strip header
  • 1 x RGB LED strip header
  • 4 x SATA 6Gb/s connectors
  • 2 x M.2 Socket 3 connectors
  • 1 x front panel header
  • 1 x front panel audio header
  • 1 x speaker header
  • 1 x USB 3.2 Gen 1 header
  • 1 x USB 2.0/1.1 header
  • 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
  • 1 x Clear CMOS jumper

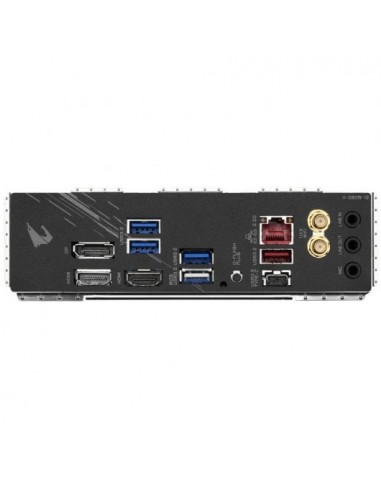

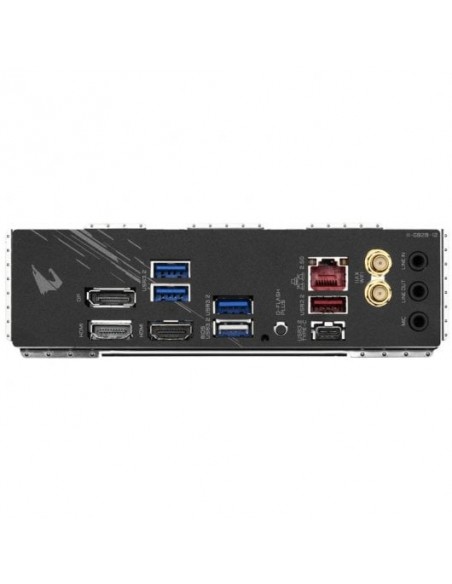

• Back Panel Connectors
  • 1 x DisplayPort
  • 2 x HDMI ports
  • 1 x USB 3.2 Gen 2 Type-A port (red)
  • 4 x USB 3.2 Gen 1 ports
  • 1 x USB Type-C™ port, with USB 3.2 Gen 2 support
  • 1 x Q-Flash Plus button
  • 1 x RJ-45 port
  • 2 x SMA antenna connectors (2T2R)
  • 3 x audio jacks
• I/O Controller
  • iTE® I/O Controller Chip
  • H/W Monitoring
  • Voltage detection
  • Temperature detection
  • Fan speed detection
  • Overheating warning
  • Fan fail warning
  • Fan speed control
  • * Whether the fan speed control function is supported will depend on the cooler you install.
• BIOS
  • 1 x 256 Mbit flash
  • Use of licensed AMI UEFI BIOS
  • PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
• Unique Features
  • Support for APP Center
  • * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
  • @BIOS
  • EasyTune
  • Fast Boot
  • Game Boost
  • ON/OFF Charge
  • RGB Fusion
  • Smart Backup
  • System Information Viewer
  • Support for Q-Flash Plus
  • Support for Q-Flash
  • Support for Xpress Install
• Bundled Software
  • Norton® Internet Security (OEM version)
  • XSplit Gamecaster + Broadcaster (12 months license)
  • Realtek® 8125 Gaming LAN Bandwidth Control Utility
• Operating System
  • Support for Windows 10 64-bit
• Form Factor
  • Mini-ITX Form Factor; 17.0cm x 17.0cm
