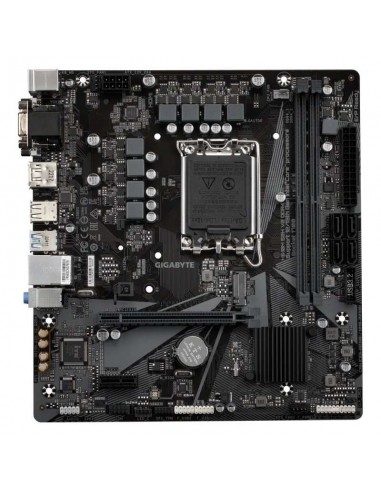

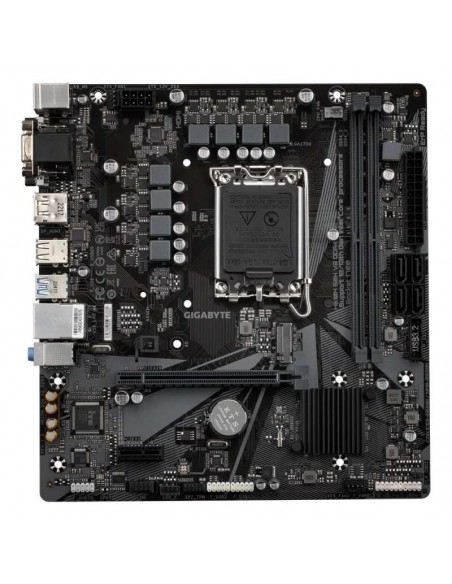

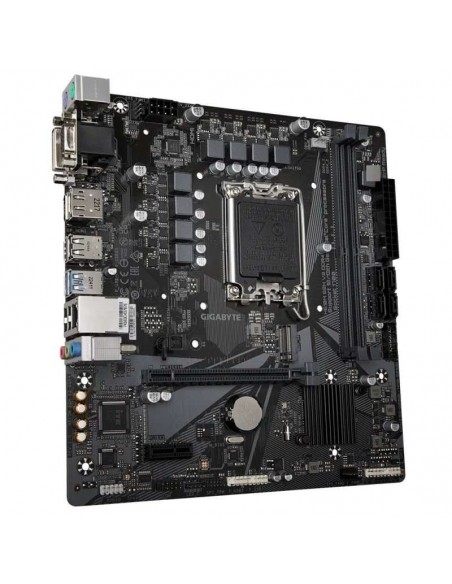

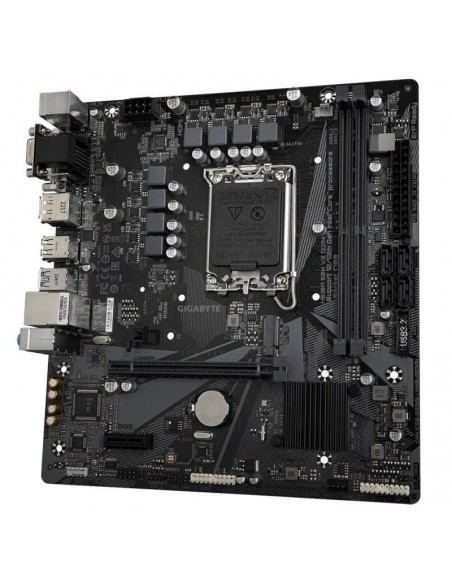

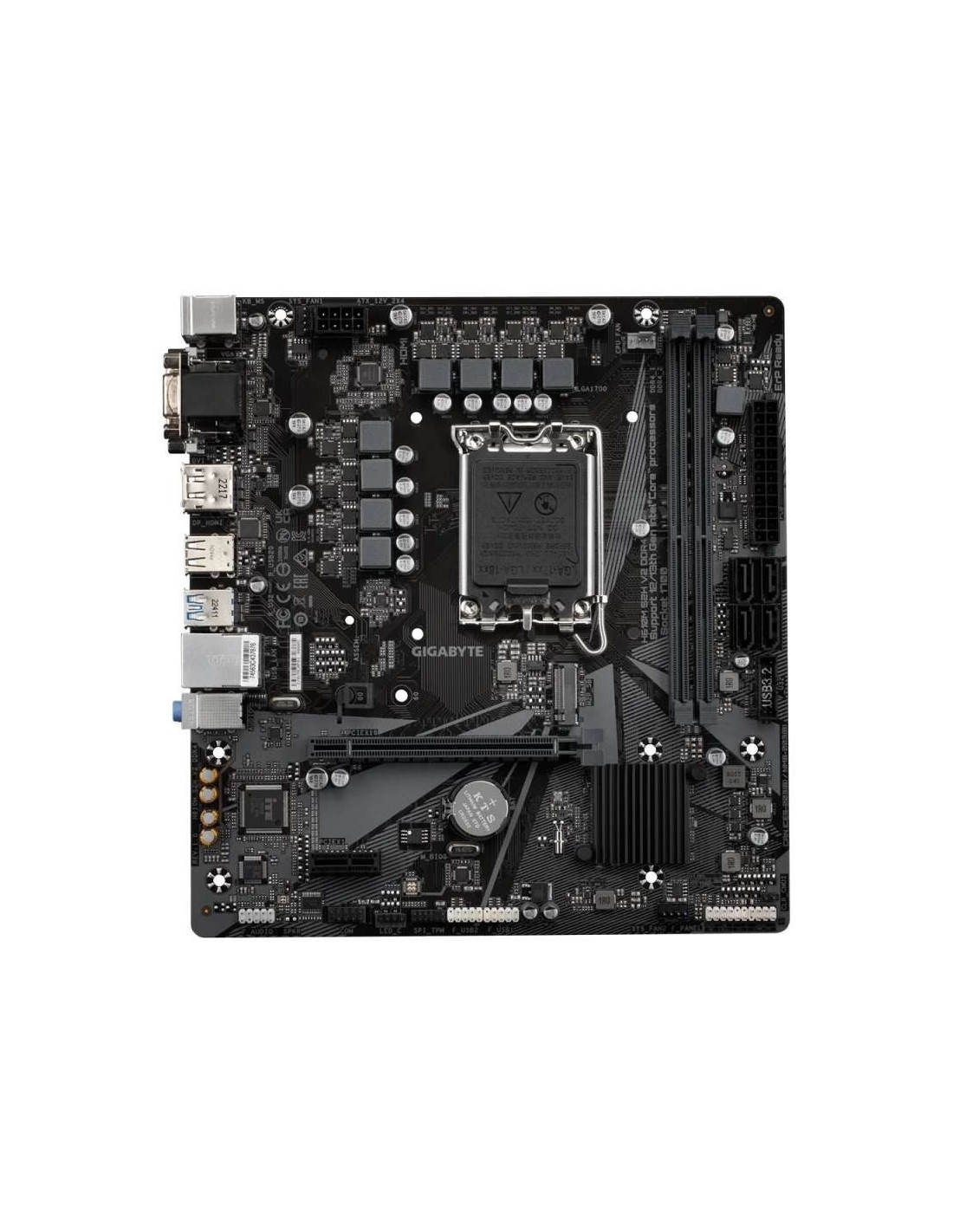

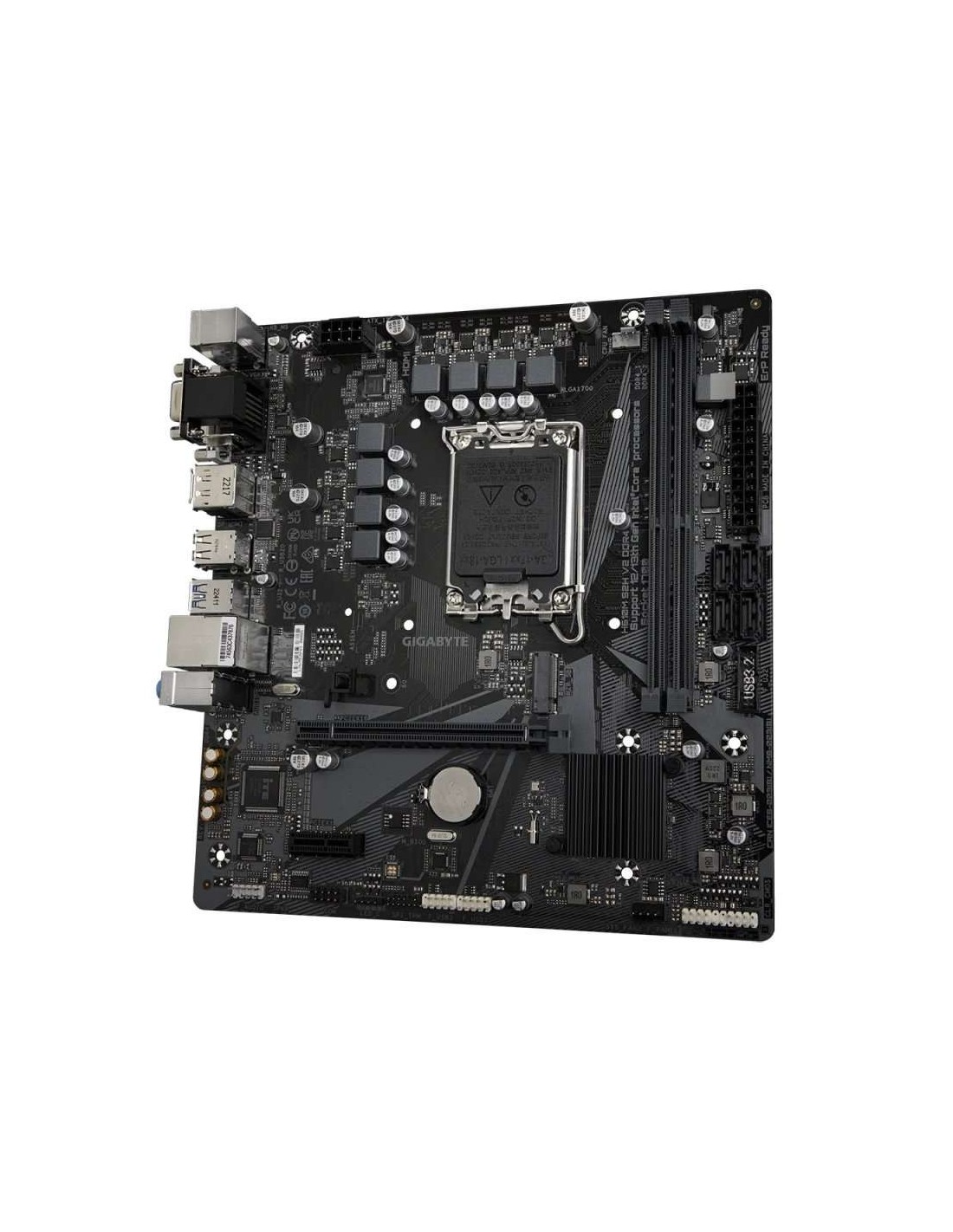

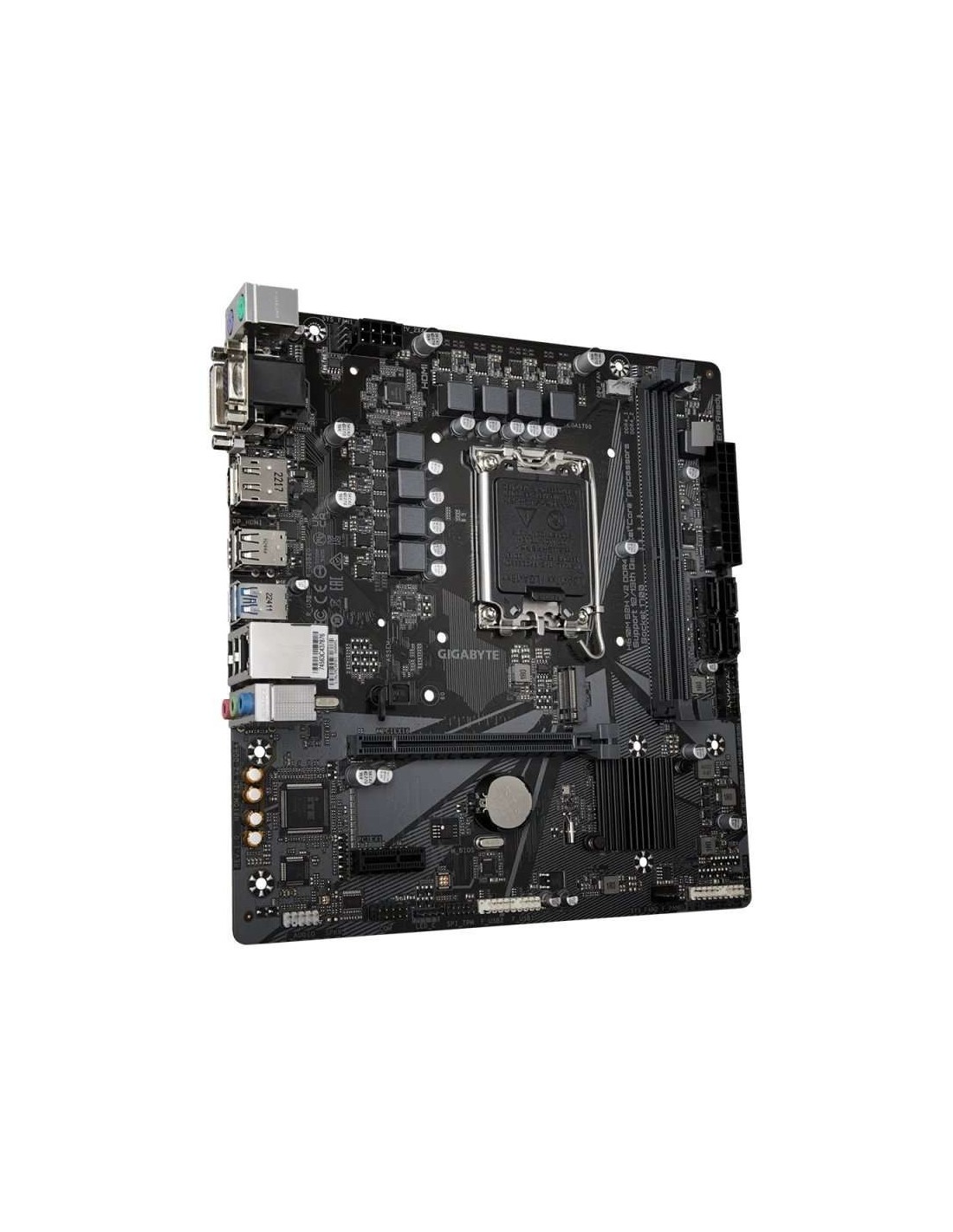

Gigabyte H610M S2H V2 DDR5 Placa Base

Placa base Intel® H610 con 6+1+1 fases híbridas Diseño VRM digital, diseño PCIe 4.0*, Gen3 x4 M.2, puertos DisplayPort/HDMI/DVI-D/D-Sub para varias pantallas, resistencia antisulfuro, ventilador inteligente 6.

Características:

• Admite procesadores de la serie Intel® Core™ de 13.ª y 12.ª generación
• DDR5 sin búfer sin ECC de dos canales, 2 DIMM
• Diseño VRM digital híbrido 6+1+1
• LAN GbE con gestión de ancho de banda
• NVMe PCIe 3.0 x4 M.2
• Puertos DisplayPort / HDMI / DVI-D / D-Sub para múltiples pantallas
• Condensadores de audio de alta calidad y protector de ruido de audio
• Smart Fan 6 cuenta con múltiples sensores de temperatura, cabezales de ventilador híbridos con FAN STOP
• Centro de aplicaciones GIGABYTE, uso simple y fácil
• Diseño de resistencias anti-azufre

Especificaciones Gigabyte H610M S2H V2 DDR5

• Procesador
  • LGA1700 socket: Support for 13th Generation Intel® Core™ Processors and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors*
  • L3 cache varies with CPU
  • * Please refer to "CPU Support List" for more information.
• Chipset
  • Intel® H610 Express Chipset
• Memoria
  • Support for DDR5 3200/3000/2933/2666/2400/2133 MT/s memory modules
  • 2 x DDR5 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory
  • Dual channel memory architecture
  • Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
  • Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
  • support for Extreme Memory Profile (XMP) memory modules
  • (Please refer "Memory Support List" for more information.)
• Gráfica Integrada
  • Integrated Graphics Processor-Intel® HD Graphics support:
  • 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
  • 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz
  • * The DVI-D port does not support D-Sub connection by adapter.
  • 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
  • * Support for HDMI 2.0 version and HDCP 2.3.
  • 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
  • * Support for DisplayPort 1.2 version and HDCP 2.3
  • (Graphics specifications may vary depending on CPU support.)
• Audio
  • Realtek® Audio CODEC
  • High Definition Audio
  • 2/4/5.1/7.1-channel
  • * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
• LAN
  • Realtek® GbE LAN chip (1 Gbps/100 Mbps)
  • Zócalos de Expansión
  • CPU:
  • 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16
  • Chipset:
  • 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1
  • Interfaz de almacenamiento
  • Chipset:
  • 1 x M.2 connector (Socket 3, M key, type 2280/2260 PCIe 3.0 x4/x2 SSD support)
  • 4 x SATA 6Gb/s connectors
• USB
  • Chipset:
  • 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
  • 4 x USB 2.0/1.1 ports on the back panel
  • Chipset+USB 2.0 Hub:
  • 4 x USB 2.0/1.1 ports available through the internal USB headers
• Conectores Internos E/S
  • 1 x 24-pin ATX main power connector
  • 1 x 8-pin ATX 12V power connector
  • 1 x CPU fan header
  • 2 x system fan headers
  • 1 x M.2 Socket 3 connector
  • 4 x SATA 6Gb/s connectors
  • 1 x RGB LED strip header
  • 1 x front panel header
  • 1 x front panel audio header
  • 1 x USB 3.2 Gen 1 header
  • 2 x USB 2.0/1.1 headers
  • 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
  • 1 x serial port header
  • 1 x Clear CMOS jumper

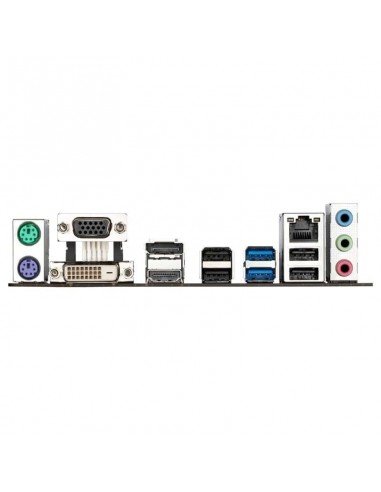

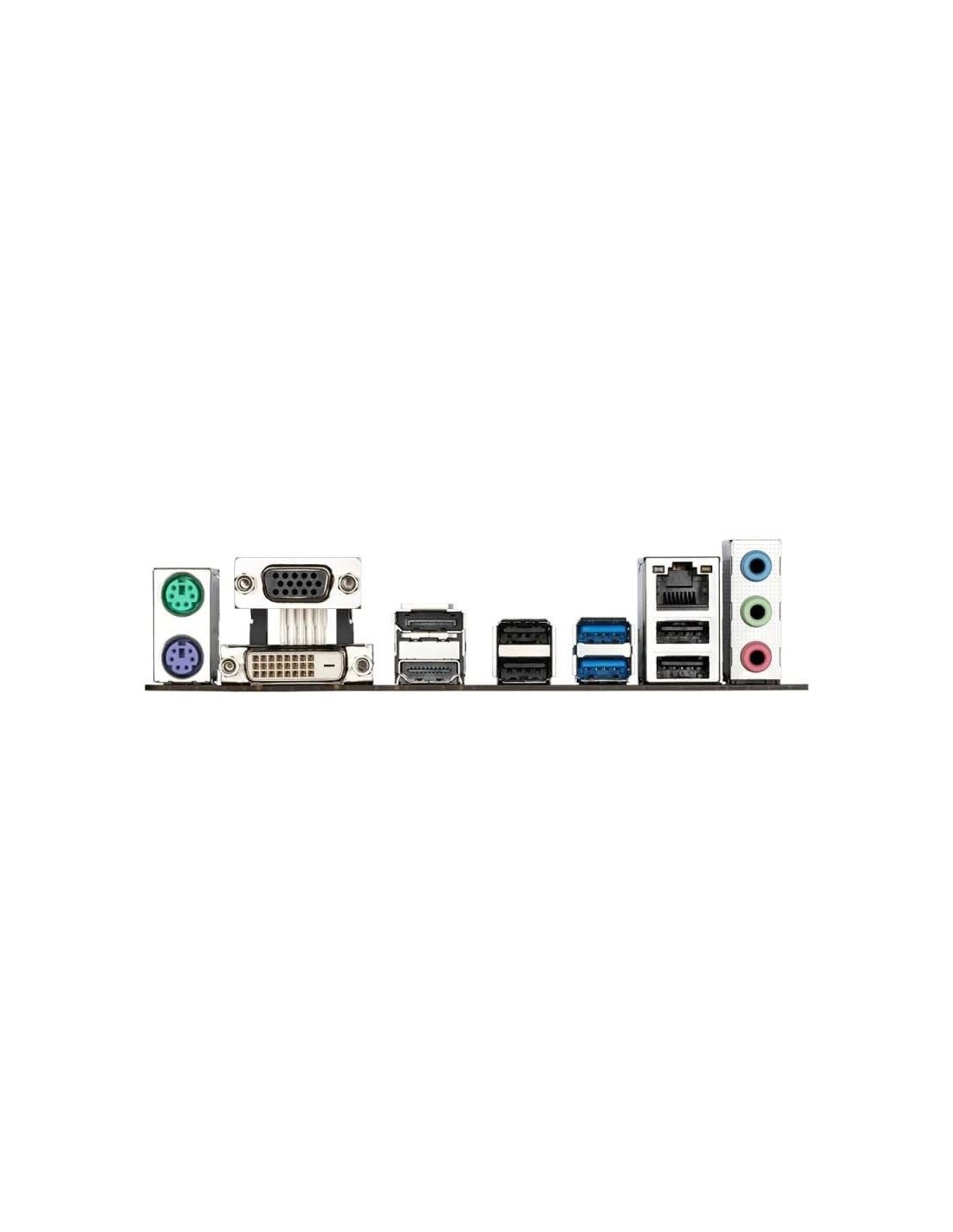

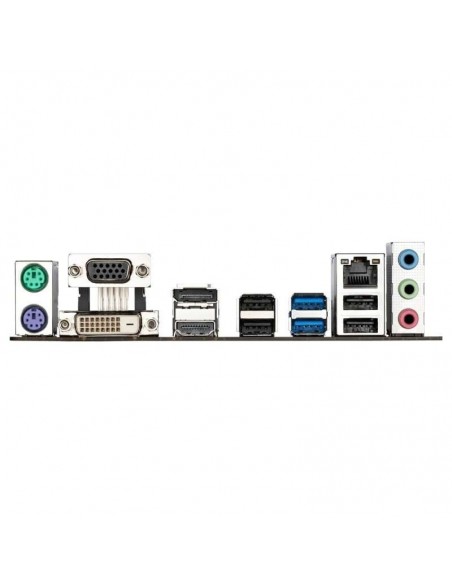

• Panel E/S Trasero
  • 1 x PS/2 keyboard port
  • 1 x PS/2 mouse port
  • 1 x D-Sub port
  • 1 x DVI-D port
  • 1 x DisplayPort
  • 1 x HDMI port
  • 2 x USB 3.2 Gen 1 ports
  • 4 x USB 2.0/1.1 ports
  • 1 x RJ-45 port
  • 3 x audio jacks
• Controlador E/S
  • iTE® I/O Controller Chip
  • Monitorización Hardware
  • Voltage detection
  • Temperature detection
  • Fan speed detection
  • Water cooling flow rate detection
  • Fan fail warning
  • Fan speed control
  • * Whether the fan speed control function is supported will depend on the cooler you install.
• BIOS
  • 1 x 128 Mbit flash
  • Use of licensed AMI UEFI BIOS
  • PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
• Otras Características
  • Support for APP Center
  • * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
  • @BIOS
  • Ambient LED
  • EasyTune
  • Smart Backup
  • System Information Viewer
  • Support for Q-Flash
  • Support for Xpress Install
• Bundled Software
  • LAN bandwidth management software
• Sistema Operativo
  • Support for Windows 11 64-bit
  • Support for Windows 10 64-bit
• Formato
  • Micro ATX Form Factor; 23.0cm x 21.5cm
